HPI Racing FLX18‑2S30 Flux Crawler ESC with XT‑30 for Venture18 (160836)

Description

HPI Racing FLX18‑2S30 Flux Crawler ESC with XT‑30 for Venture18 (160836)

Micro Brushless ESC • 1/18 Scale Crawler / Trail Trucks

The HPI Racing FLX18‑2S30 Flux Crawler ESC (160836) is a compact, high‑precision brushless ESC engineered specifically for micro crawler and trail platforms, including the HPI Venture18. Designed to deliver ultra‑smooth low‑speed control, this ESC is ideal for technical crawling where throttle precision and strong drag brake performance are critical. It comes factory‑fitted with an XT‑30 battery connector for easy compatibility with modern micro LiPo packs.

Product Overview

Smooth Control for Technical Crawling

Built for vehicles up to 1/18 scale, the FLX18‑2S30 emphasizes control rather than outright speed. Its crawler‑focused tuning provides excellent throttle resolution, helping drivers precisely manage wheel speed over rocks, roots, and steep climbs.

The compact size and lightweight design make it an easy drop‑in upgrade or replacement for Venture18 builds where space is limited.

Performance & Features

Crawler‑Tuned Micro ESC

• Brushless crawler ESC for micro‑scale vehicles
• Adjustable parameters via included program card, including:
  • Motor direction
  • Drag brake strength
  • Low‑voltage cutoff
• Adjustable BEC output for reliable servo power
• XT‑30 battery connector pre‑installed
• Compact footprint for tight chassis layouts

Specifications

• Brand: HPI Racing
• Model: FLX18‑2S30 Flux
• ESC Type: Brushless (crawler‑tuned)
• Scale Compatibility: Up to 1/18
• Input Voltage: 2S LiPo
• Continuous / Peak Current: 30A / 50A
• BEC Output: Adjustable 5.5V – 8.4V
• Dimensions: 30 × 19 × 9 mm
• Weight: 11 g
• Connector: XT‑30
• Part Number: 160836

Compatibility

• Designed for HPI Venture18 models
• Suitable for 1/18 scale micro crawlers and trail trucks
• Compatible with sensorless brushless crawler motors
• Works with standard micro LiPo batteries using XT‑30 connectors

What’s Included

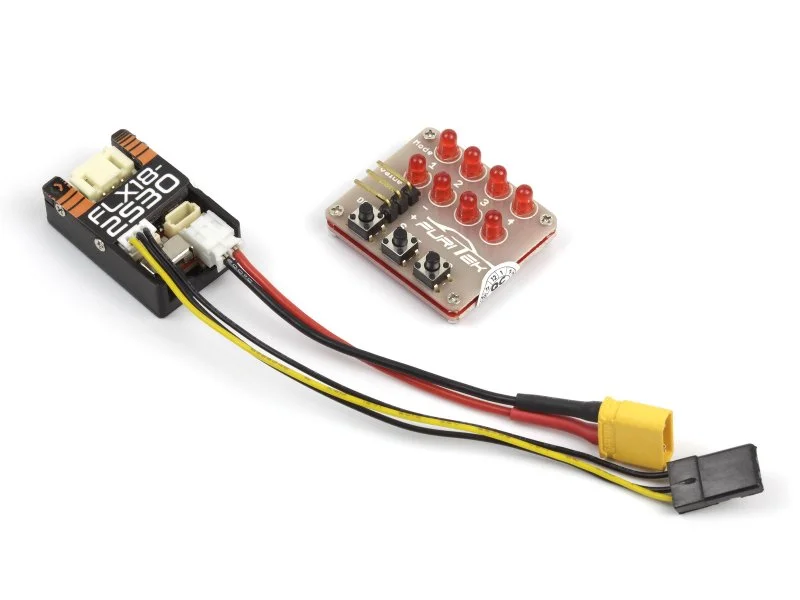

• 1 × HPI Racing FLX18‑2S30 Flux Crawler ESC
• Programming card
